AIC-2 / AIC-25

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PH: 7.0-8.0, PIPE SIZE: 1/4"
SERVICE LIFE: 1500GAL.(AIC-2)
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 9KGS (AIC-2, AIC-2SC)

AIC-2SC / AIC-25SC

Silver carbon DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm)
SERVICE LIFE: 2500GAL.(AIC-25)
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PH: 7.0-8.0, PIPE SIZE: 1/4"
SERVICE LIFE: 1500GAL.(AIC-2)
24PCS/CARTON/39x32x28cm 13.6KGS (AIC-25, AIC-25SC)

AIC-2S / AIC-25S

DIA: 2.0" (52mm)
LENGTH: 6.5"(168mm+-2mm) DIA: 2.5" (64mm)
LENGTH: 6.5"(168mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PH: 7.0-8.0, PIPE SIZE: 1/4"
SERVICE LIFE: 750GAL.(AIC-2S)
SERVICE LIFE: 1000GAL.(AIC-25S)
SHIPPING PACKAGE: 60PCS/CARTON/39x31x27cm 12.5KGS(AIC-2S) 40PCS/CARTON/39x31x27cm 14KGS(AIC-25S)

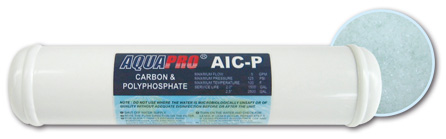

AIC-2P / AIC-25P

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm) DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm) MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SERVICE LIFE: 1500GAL.(AIC-2P)
SERVICE LIFE: 2500GAL.(AIC-25P)
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 10.4KGS(AIC-2P)

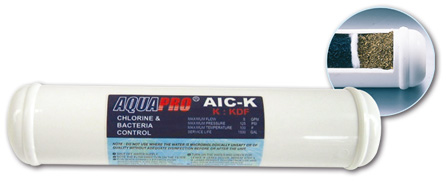

AIC-2K / AIC-25K

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm) DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm) MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SERVICE LIFE: 2500GAL.(AIC-25k)
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 11KGS(AIC-2k)

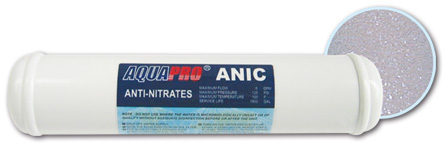

ANIC-2 / ANIC-25

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm)
DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 19.2KGS(ANIC-2) 24PCS/CARTON/39x32x28cm 13.5KGS(ANIC-25)

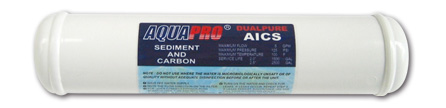

AICS-2 / AICS-25

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm)
DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PH: 7.0-8.0
PIPE SIZE: 1/4"
SERVICE LIFE: 1500GAL.(AICS-2)
SERVICE LIFE: 2500GAL.(AICS-25)
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 8.2KGS(AICS-2) 24PCS/CARTON/39x32x28cm 14KGS(AICS-25)

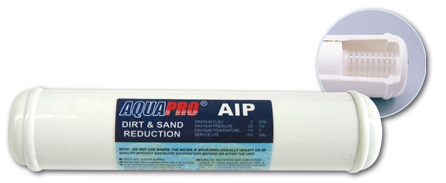

AIP-2 / AIP-25

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm) DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm) MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
NOMINAL FILTRATION: 5 MICRON
PIPE SIZE: 1/4"
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 6KGS(AIP-2) 24PCS/CARTON/39x32x28cm 10KGS(AIP-25)

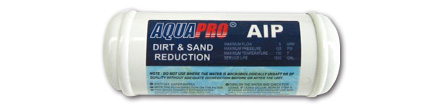

AIP-2S/ AIP-25S

DIA: 2.0" (52mm)
LENGTH: 6.5"(168mm+-2mm)
DIA: 2.5" (64mm)
LENGTH: 6.5"(168mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
NOMINAL FILTRATION: 5 MICRON
PIPE SIZE: 1/4"
SHIPPING PACKAGE: 60PCS/CARTON/28x28x27cm 12KGS(AIP-2S) 40PCS/CARTON/39x32x28cm 12KGS(AIP-25S)

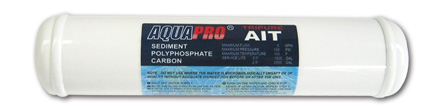

AIT-2 / AIT-25

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm)
DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SERVICE LIFE: 1500GAL.(AIT-2)
SERVICE LIFE: 2500GAL.(AIT-25)
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 10KGS(AIT-2) 24PCS/CARTON/39x32x28cm 13.5KGS(AIT-25)

AIM-2 / AIM-25

5 Stage RO system w/pump & UV1 10" sediment prefilter
10" GAC prefilter
10" carbon block prefilter
Booster pump110/220V, 50/60Hz
RO membrane (50, 75, or 100GPD)
Post inline GAC filter
Anti-scalent filter
AP-600-UV1: with UV1GPM sterilizer
Faucet & installation kit
4.4 gal. RO tank & ball valve Shipping dimension & weight: *AP-600-UV1: 50x53x52cm 20kgs *AP-600-UVS: 53x52x49cm 20kgs

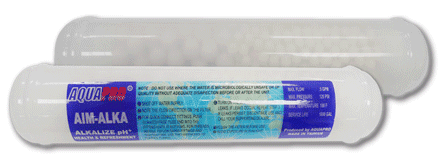

AIM-ALKA2

DIA: 2.0" (52mm)
LENGTH: 10.5"(262mm+-2mm)
DIA: 2.5" (64mm)
LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SHIPPING PACKAGE: 25PCS/CARTON/28x28x27cm 13.8KGS(AIM-ALKA2)
24PCS/CARTON/39x32x28cm 25KGS(AIM-ALKA25)

AIM-2E4M

DIA: 2.0" (52mm)
LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SHIPPING PACKAGE: 20PCS/CARTON/32x26x33cm 13KGS

AIM-2E-ALKA
